Expert Clay Pipe Repair for a Collapsed Drain at a Property in Dorset
Drainage problems can quickly escalate from minor blockages into major operational issues when damaged pipework is left unresolved. At a property in Poole, recurring drain blockages indicated a deeper problem within the underground system. Following a detailed site investigation and CCTV survey, engineers identified a collapsed drain caused by a damaged clay pipe section. Metro Rod Dorset & Portsmouth was deployed to excavate the affected area, carry out repairs, and restore the drainage network, preventing further disruption and reducing the risk of future failures.
Older clay drainage systems remain common across Poole and the wider Dorset area, particularly in properties built before modern PVC pipework became the industry standard. Over time, these systems can become vulnerable to cracking, ground movement, joint displacement, and root ingress, all of which can contribute to recurring drainage problems and collapsed drains.
The Challenge: Identifying a Collapsed Drain and Failing Clay Pipe in Poole
The site had been experiencing persistent drain blockages, suggesting that standard clearance methods alone would not resolve the issue. Upon attending the property, engineers carried out an investigation and discovered a damaged section of clay pipe that had partially collapsed beneath the surface. The deterioration had restricted flow through the drainage system, causing repeated blockages and increasing the risk of more extensive failure. To fully assess the condition of the network, a CCTV survey was undertaken, which confirmed the presence of a collapsed drain and highlighted areas requiring remedial attention to ensure the long-term integrity of the system. The findings were consistent with issues frequently encountered in older drainage networks throughout Dorset, where ageing clay pipes can become damaged over decades of use.
The Solution: Excavation and Clay Pipe Repair Using PVC Replacement Materials
To address the problem, the drainage team returned to site with specialist excavation equipment, including a breaker, utility detector, petrol disk cutter, and generator. The affected area was excavated to a depth of approximately 0.7 metres, allowing engineers to safely expose the damaged clay pipe.
Once accessed, the collapsed and broken section was repaired using two 100mm straight patch repairs to restore structural integrity and maintain flow through the pipework. Additional CCTV inspections were completed to assess the surrounding drainage infrastructure and identify any further defects that could impact system performance.

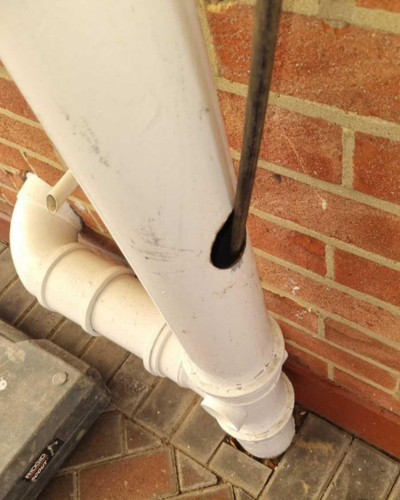

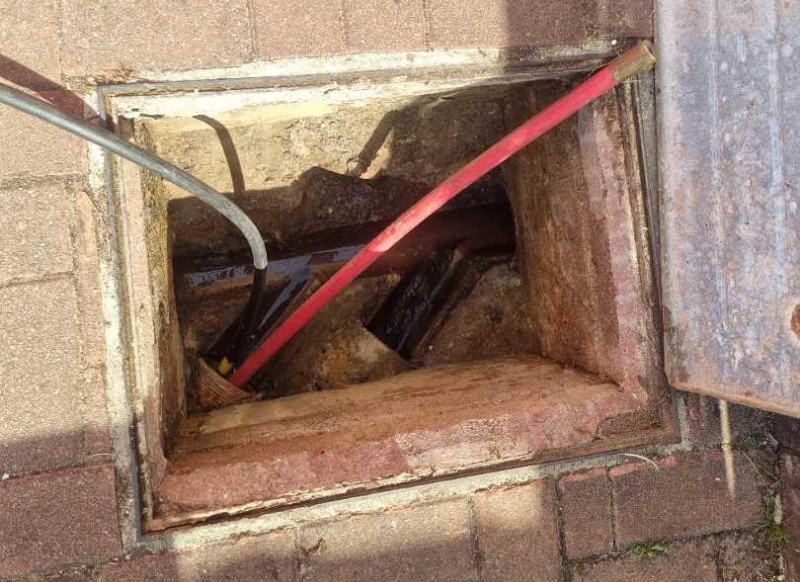

As part of the remedial works, replacement drainage materials, including 100mm PVC pipework and a new gully pot, were installed where required. PVC provides a durable and cost-effective alternative to ageing clay systems, helping to reduce the likelihood of future failures caused by cracking, displacement, or ground movement.
The combination of excavation, targeted repairs, CCTV diagnostics, and upgraded pipework ensured that the collapsed drain was effectively stabilised while providing the client with clear recommendations for any future maintenance requirements. This proactive approach helped restore reliable drainage performance and minimise the risk of recurring issues.
By replacing damaged sections of clay pipe with modern PVC materials, the drainage system was better equipped to withstand the ground conditions commonly experienced across Poole and Dorset, helping to improve both reliability and longevity.
The Outcome: Restoring Drainage Performance After a Collapsed Drain in Poole, Dorset
The completed works successfully resolved the immediate drainage issues affecting the property. By repairing the damaged clay pipe, installing replacement PVC components, and conducting comprehensive CCTV inspections, engineers restored the drainage system’s functionality and significantly reduced the risk of repeated blockages. The intervention prevented further deterioration of the collapsed drain, protecting the site’s infrastructure and avoiding more extensive repair costs in the future. The client was left with a fully operational drainage system and clear visibility of any additional remedial works that may be required to maintain long-term performance.
As a result, the property in Dorset now benefits from a more resilient drainage system that is less susceptible to the common issues associated with ageing clay pipe networks.
